Customise

The Customise toolbar button enables you to define which columns are shown (or hidden) and to configure the rows for display in the active grid.

These settings are saved for each user and will be remembered next time that user logs into NEXUS IC.

Note

The settings are saved to a file called Integrity Centre.Settings in C:\Users\[USER_NAME]\AppData\Roaming\NEXUS.

Under the Customise toolbar button, you have the following options:

  • Customise ‣ Grouping

    Allows you to select a grid column for grouping grid rows based on specific column values. When you select a column for grouping, a grouping panel appears at the top of the grid. In this panel, you’ll see the column you’ve chosen for grouping. You can add further columns for grouping using the plus [+] sign or remove the grouping by selecting close next to it. For more information about grouping, see Grouping.

    _images/toolbar.customise.grouping.png

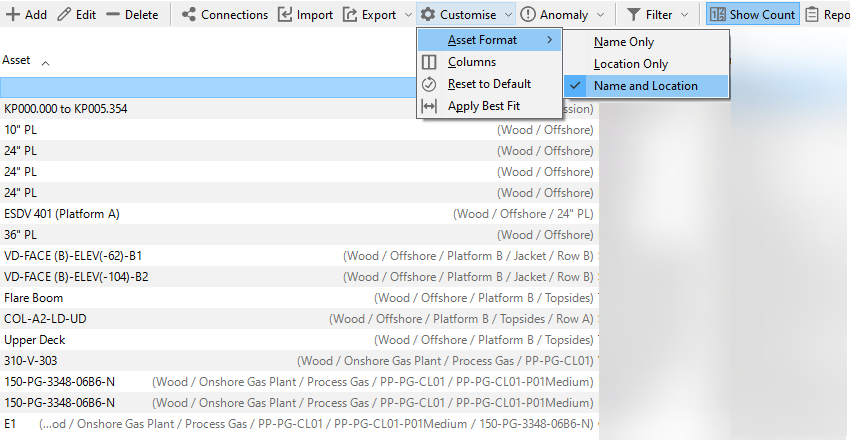

  • Customise ‣ Columns

    Allows you to select columns that you want to be displayed or deselect columns that you want to hide from the grid. You can also hide columns by right-clicking the column header and choosing Hide from the context menu.

    _images/toolbar.customise.columns.png
  • Customise ‣ Reset to Default

    Restores the default columns and column sizes back to the original designed state.

  • Customise ‣ Apply Best Fit

    Resizes the visible columns to fit best within the grid.
