Third-party DVRs
IC-Inspection can be used to remote control digital video recorders during online inspection (see Add a Third-Party DVR Device), enabling operators to manage video recording as part of the inspection workflow.
Supported Third-party DVRs

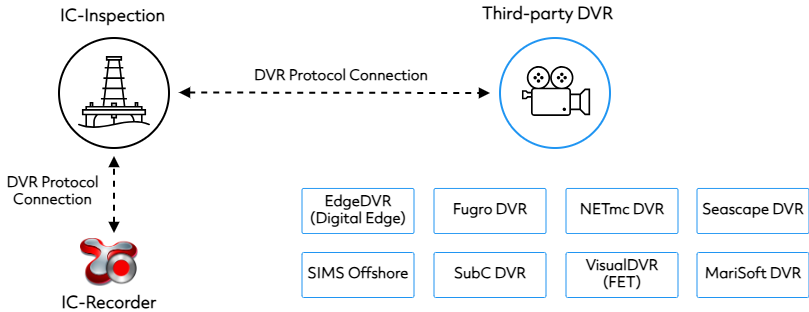

In addition to controlling our own IC-Recorder, IC-Inspection can control the following DVRs through a DVR protocol connection:
DVR Protocol Options
To enable IC-Inspection to remote control your DVR, you can choose one of the following options:
Custom DVR Protocol
We can build a custom protocol to work with your existing application.
Development is performed on a rates basis according to your specification.
A DVR system must be provided for testing.
Future updates are undertaken on your instruction.
A quotation can be provided on review of your specification.
Generic DVR Protocol
Alternatively, you can implement our standard DVR protocol for NEXUS.
For a one-off fee of 5000 USD, we provide:
The generic DVR protocol specification document for NEXUS
A software-based test harness that emulates IC-Inspection for comprehensive interface testing
Phone and email support during implementation
Updates for new features or protocol changes
Optional display of your company logo on this website
IC-Recorder: freely distributable licences of our digital video recording software (including integrated software-based text overlay) for contingency use on your hardware
Third-party DVR Configuration
To enable remote control of a third-party DVR from IC-Inspection, the device must be configured to use the appropriate DVR protocol.
Configuring VisualDVR
To configure a VisualDVR to accept commands via the protocol, perform the following steps:
Left-click on the main video preview.
In the dialog that appears, select .
Tick Enable NEXUS IC DVR control.
For other DVR products, consult the manufacturer documentation.
